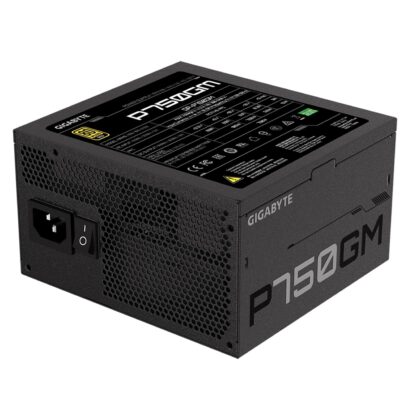

Fuente de alimentacion gigabyte gp – p750gm 750w atx 80 plus gold

Descripción

Type
Intel Form Factor ATX 12V v2.31
PFC
Active PFC (&gt,0.9 typical)
Input Voltage
100-240 Vac (full range)
Input Current
12-6 A
Input Frequency
60-50 Hz
Output Capacity
750W
Dimension
150 x 140 x 86 mm
Fan Type
120mm Hydraulic Bearing ( HYB ) fan
80 PLUS
Gold
Efficiency
90% at typical load
MTBF
&gt,100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
&gt,16ms
Cable Type
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 610mm*1
CPU/EPS 4+4 Pin x 2 : 600mm*2
PCI-e 6+2 Pin x 4 : 600mm+150mm*2
SATA x 8 : 600mm+150mm+150mm+150mm*2 :
4 Pin Peripheral x 3 + 4-Pin floppy x 1 :
500mm+120mm+120mm+120mm *1
